Electronic Access Control Turnstiles

Electronic Access Control Turnstiles

,

access control barriers

Place of Origin:

China

نام تجاری:

RONA

گواهی:

CE / ISO9001

Model Number:

RNCF1066 / RNCF1066S

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
چارچوب مواد:
304 # استیل ضد زنگ
ابعاد:
1210L * 310W * 1000H میلی متر
مواد کشویی:
شیشه ی حرارت دیده
ولتاژ برق:
AC220V٪ 10٪ ، 50Hz ± 10٪
موتور راننده:
موتور براش DC
رطوبت نسبی:
95 ≤ چگالش نیست
پورت های ورودی:
رله سیگنال تماس خشک؛ + 12 ولت سیگنال سطح و عرض پالس> 100ms ، سیگنال پالس DC12V
درگاه ارتباطات:
RS232 / RS485
شرایط پرداخت و حمل و نقل
Minimum Order Quantity
1 unit
قیمت
negotiation
Packaging Details
carton and wooden packing
زمان تحویل
7-15 روز کاری
Payment Terms
T/T,
قابلیت ارائه
2000 واحد در هر ماه
توضیحات محصول

Best Personalized Design Turnstile Barrier Gate / Sliding Gate Turnstile With Stainless Steel



PRODUCT CLASSIFICATIONS:

It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.



-> Single-core mechanism: RNCF1066

The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

-> Dual-core mechanism: RNCF1066S

The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



TECHNICAL SPECIFICATIONS:

Product Name

Sliding Gate Turnstile

Model

RNCF1066

RNCF1066S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1210mm*310mm*1000mm (default)

Material of flap

Tempered glass

Stretching-out flap length

230~235mm

Height of Sliding Gate

max of 1500mm (optional)

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC brush motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal or DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m.

Warranty

12 months

Certificate

CE





PRODUCT DESCRIPTIONS:

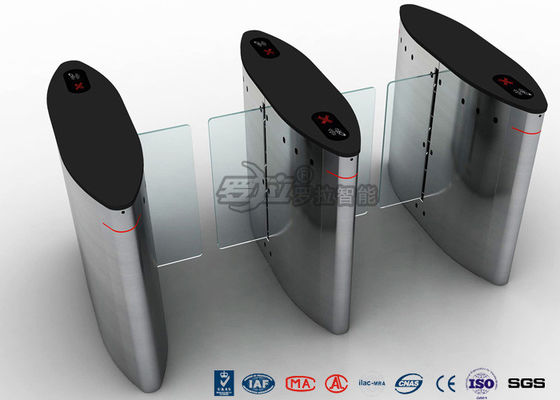

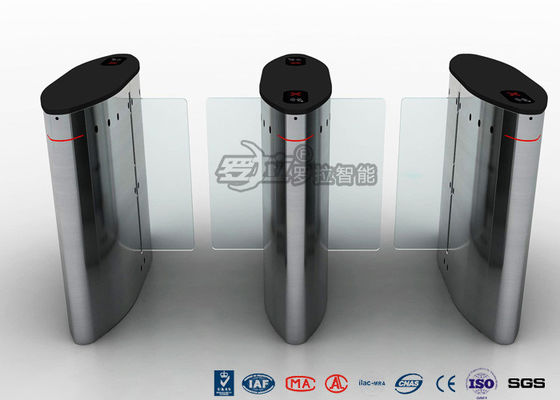

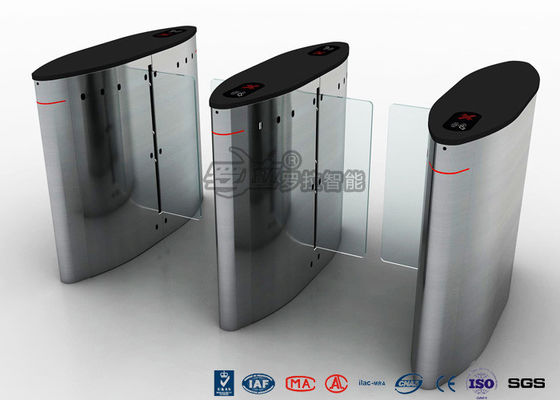

The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.



The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



DIMESNION SPECIFICATIONS:
Electronic Access Control Turnstiles 0


PROJECTS:

Electronic Access Control Turnstiles 1



FACTORY:

Electronic Access Control Turnstiles 2


CONTACT US:
Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.

Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109

Contact Person: Ms. Sophia Wey
Cel: +86-15986833719
Email: export@szrona.cn
Skype: rona.export
Tel: +86-755-88853586 ext 8039
Fax: +86-755-88853586 ext 8002
