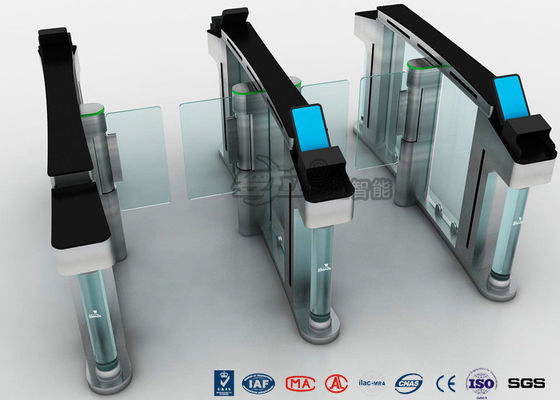

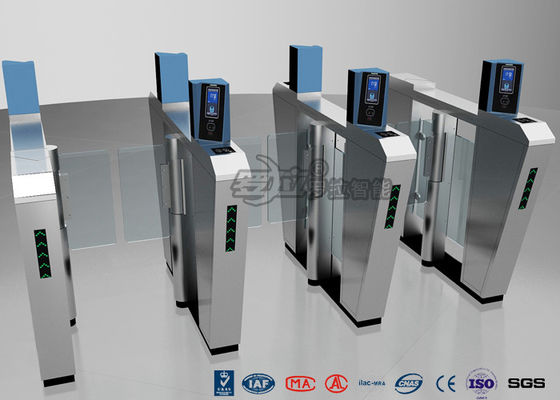

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

    • Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile
    • Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile
  • Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: RONA
    گواهی: CE / ISO9001
    Model Number: Customized

    پرداخت:

    Minimum Order Quantity: 1 Lane
    قیمت: negotiation
    Packaging Details: carton and wooden packing
    زمان تحویل: 7-15 روز کاری
    Payment Terms: T/T, Western Union
    قابلیت ارائه: 2000 واحد در هر ماه
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Materials: 304# Stainless Steel Finish: brushed surface/polishing surface
    Power voltage: AC220V±10%, 50Hz±10% Driver motor: DC Servo Motor
    Passing speed: 40 persons/min Passage Width: 600mm~1200mm
    Operation temperature:: -10℃ ~ +70℃ Communication Port: RS232 / RS485

    Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile





    PRODUCT DESCRIPTIONS:

    The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



    The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.



    SPECIFICATIONS:



    Framework

    304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

    Thickness of ply

    1.7mm

    Finish

    brushed surface, polishing surface

    Shell's size (L*W*H)

    Customized

    Swing arm material

    Tempered glass or Acrylic (optional)

    Stretching out swing length

    260mm~600mm

    The inductive card reader dimension

    equipped with the standard mounting brackets or tailor.

    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    DC36 servo motor

    Main-board voltage

    12V DC

    In-built Infrared

    6 pairs/passageway

    Passing speed in normally open mode

    50 persons/min

    Passing speed in normally closed mode

    40 persons/min

    Passage Width

    600mm ~1200mm

    Swing arm transmission angle

    180°

    Swinging direction

    unidirectional or bi-directional

    Opening / closing time

    0.1 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    1 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



    APPLICATIONS:

    Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.



    TECHNICAL DETAILS:

    1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

    2. With normally open & normally closed working mode

    3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

    4. With direction indication, guiding passenger to entry and exit.

    5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

    6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

    7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

    8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

    9. The treatment mode in emergency or in special conditions.

    10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

    11. Strong system expending capability, available to add new product at any time.

    12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.



    FACTORY:
    Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel

    EXHIBITION:
    Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel

    CUSTOMERS:
    Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel

    CONTACT US:
    Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.

    Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
    Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109

    Contact Person: Ms. Sophia Wey
    Cel: +86-15986833719
    Email: export@szrona.cn
    Skype: rona.export
    Tel: +86-755-88853586 ext 8039
    Fax: +86-755-88853586 ext 8002
