Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank

Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank

پایه گردان سیستم کنترل دسترسی,

access control barriers

محل منبع:

China

نام تجاری:

RONA

گواهی:

CE / ISO9001

شماره مدل:

RNCF 5099-nonstandard

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
ماده:
فولاد ضد زنگ 304
موتور رانندگی:
موتور DC بدون برس
اندازه:
1200 * 280 * 980mm
عرض گذرگاه:
550 میلی متر ~ 1.2m
درجه حرارت:
-20 ° C ~ 60 ° C
محیط کار:
درونی بیرونی
ادغام سیستم:
بله
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1 pair
قیمت
negotiation
جزئیات بسته بندی
Export Wooden Packing
زمان تحویل
7-15 روز کاری
شرایط پرداخت
, T/T, L/C
قابلیت ارائه
2000 واحد در هر ماه
محصولات مرتبط

Biometric Access Control Turnstiles

بهترین قیمت رو بدست بیار

Electronic Access Control Turnstiles

بهترین قیمت رو بدست بیار

Stainless Steel Access Control Turnstiles

بهترین قیمت رو بدست بیار
با ما تماس بگیرید
86-755-88853586-8002
حالا تماس بگیرید
توضیحات محصول

Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank ​



Product introduce

Drop arm function turnstile is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.

Drop arm function turnstile  ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.


1) A automatic drop arm turnstile is a mechanism that allows a location to have control over entry and exit.

2) Most turnstiles consist of a horizontal arm that extends from a post and allows persons to pass through, given the particular condition has been met.

3) To pass through the automatic drop arm turnstile, it might be necessary to present an authorized identification or to make payment.

4) Other similar structures keep a count of individuals that pass through.

5)Turnstiles provide security, control crowds, prevent loss control, and control admission and/or access.

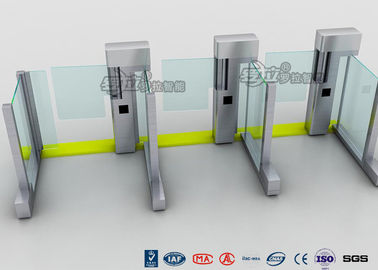

Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank 0



System Integration of the arm drop turnstile
1) Alternative Materials, Finishes and Custom Design
2) Access control System Integration
3) Ticket System Integration
4) Camera System Integration
5) Thermostat System Integration
6) Remote-Controlled Button
7) Usage Counters
8) Waterproof and Dustproof Design: IP41 for mechanical module,IP65 for electric module




Feature of the Arm drop turnstile:

1) NO mode & NC mode can be switched over by users easily & freely.

2) Self-recovery function: the machine will recovery automatically with invalid counting if passage

is not completed within pre-set time (5 seconds default, adjustable by software).

3) Self-examine Function: it is convenient for users to maintain and use.

4) Tailgating-detection function.

5) Intruding-alarm function.

6) Anti-pinch function: protection against finger entrapment and personal injury.

7) Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

8) With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of acces controllers.

9) Each machine can be set by Physical Address (Optional).

10) Equipped with free control software for man-machine interface & control command SDK.



Parameter of Arm drop turnstile
Power supply Single phase 220v,50Hz Humidity ≤95%
Control Circuit DC Brush Motor Arm length  550mm
Passing Method Bi- directional  Reader windows 2
Speed 25~30 people/min(Normal) Temperature -20°c~+50°c
Service Time More than three  million times Weight 96KG
Shock Resistance More tahn 80KG Protection IP51
Shock Absorber Hydraulic Pressure Environment Inside,outside(awning)
Input Singal

+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

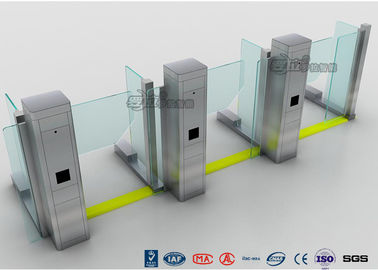

Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank 1


Turnstyle Door Turnstile Access Control System Arm Swing Barrier Gates For Bank 2
