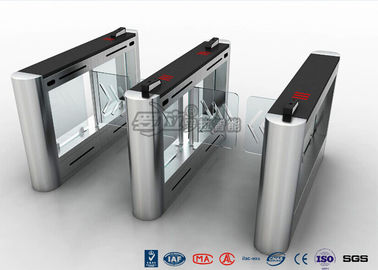

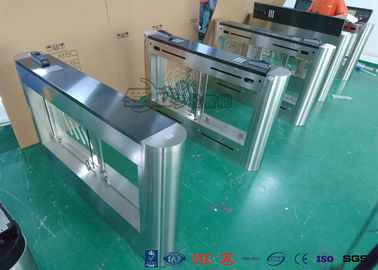

Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System

Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System

    • Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System
    • Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System
  • Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: RONA
    گواهی: CE / ISO9001
    Model Number: RNCF F8008

    پرداخت:

    Minimum Order Quantity: 1 pair
    قیمت: negotiation
    Packaging Details: Export Wooden Packing
    زمان تحویل: 7-15 روز کاری
    Payment Terms: Western Union, L/C, T/T
    قابلیت ارائه: 2000 واحد در هر ماه
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Material: 304 stainless steel Standard size: 1600mm (L) *200mm (W) *1050mm (H)
    Driving motor: DC24V brush motor Swing length: 262~450mm
    Material swing: Stainless steel or Acrylic Pass speed: 25-30 persons/min
    IP: 54 Working environment: -30℃~70℃
    Environment: Indoor or outdoor Working life: 3 millions
    Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA Guarantee: 12 Months

    2016 newest Anti - Collision Walk Through Metal Swing Gate For Bus Station Card Reader System





    Introduce of swing barrier gates

    Swing barrier is an ideal passenger access management device produced by our company after years research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor and various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices. Direction indicator and well-extended LED counting display.



    Bridge swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



    Swing barrier gates Standard features & functions

    1, Barriers made from stainless steel, acrylic glass, etc;

    2,Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay

    3, Automatic counting indicating passenger's number.

    4, Human base model indication function, real time displaying, improve the passing rate and convenient maintain

    5, Anti pinch function, barriers auto open when power shut, insure user safety.

    6, Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

    7, Super combination capacity, adjustable model on site

    8, Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators

    8, Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.

    10, Turned up-coverage is water-proof and easy maintain.

    11, Open direction adjustable even though power off



    Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System



    Basic information of swing barrier gates

    Housing material 304 grade stainless steel(thickness 1.5mm)
    Length of arm 600mm(standard)/500-900mm(option)
    Arm's rotation angle 180 degree
    Swing direction single or bi-direction
    Driving electromotor DC Brush electromotor 50W/24V
    Normal useful life 5 million times
    Working voltage AC220V±10%V/50±10%Hz,AC110V±10%/50Hz±10%
    Temperature -10C - 50C
    Working environment Indoor ,outdoor(with a tent over)
    Transit speed 40 persons/min(open often) 25-30 person/min(close often)
    Open/close time 2~3s
    Starting time after power on 3s
    Automatic reset time after fault 10s
    Communication interface RS485 standard distance less than 1200 meters
    Input interface Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA
    Relative humidity <= 90% no condensation

    Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System
